So to recap, I was trying to make a clock. I had acquired a Texas Instruments Launchpad for developing code to put on their MSP430 family of microprocessors. I had code that was blinking an LED on the Launchpad on intervals determined by the chip’s internal timer. Fantastic, now I can look at wiring up a circuit so that does something.
By this time, I had my shipment of parts, and that included the seven-segment display. That’s when I learned a few things about seven-segment displays I was previously happily ignorant of. To start off, they’re literally a bunch of LEDs in a brick. But, since having individual pins for each LED’s two leads would be a bit of a pain for everyone, they will tie all of one side together into a common pin and let the end user control the LEDs with the other end. This results in there being two main variants of seven-segment displays – common anode, and common cathode. In a common anode setup, each LED has its own ground pin, with a single positive pin for the lot. In a common cathode setup, there is one ground pin and a stack of positive pins.
You all (should) know what a digital clock display looks like, each digit is made up of seven straight lines, thus giving the seven-segment display its name. If I have a four-digit model that means…

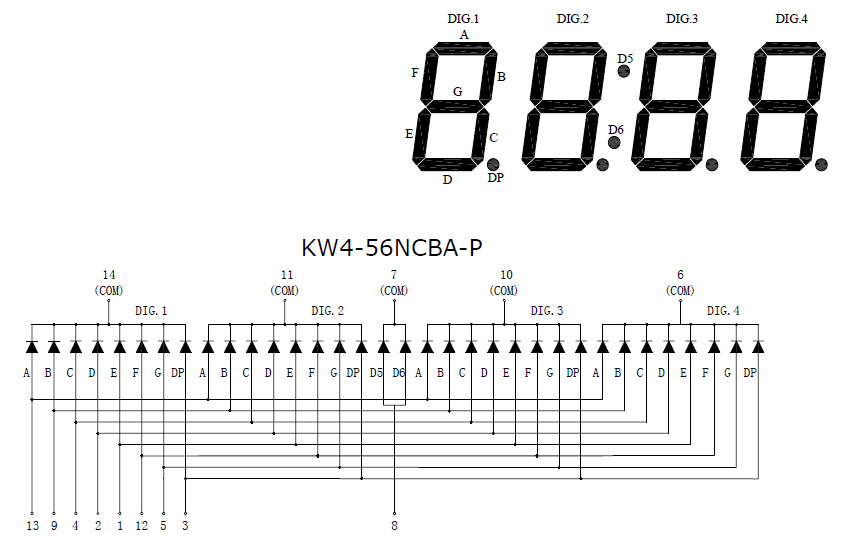

Okay, so, why are there fourteen pins?
Well, first up, there are actually thirty-four LEDs in this brick, four digits with seven segments and a dot in the lower right each, and two for the colon separating the two pairs of digits. I meant it when I said it looked like a clock display. I have a common cathode setup, so we have… five cathode and nine anode pins. What’s so common about that? Truth is that the ‘common anode’ and ‘common cathode’ configuration refers to each digit in the brick. Each one gets a single pin of the common type for its own collection of lights and shares the pins on the other end with the other three digits. If I were to hook all five of the cathode pins to ground and start putting power into the anode pins we would see the same segment light up on all four digits with the exception of the colon. Turns out the two LEDs in the middle get their own separate circuit unrelated to the sharing going on between the digits.
So how in the heck do you display anything that isn’t four of the same digit?
You have to rely on the human eye and the brain’s laziness. Basically, if you cycle through lighting up each digit fast enough, the viewer sees them all as being on at the same time. How do we coordinate toggling so many pins together? Well, that sounds like a job for a shift register, and I just so happen to have figured out how to use those. Okay, actually, it sounds like a job for two, since we’ve got to control thirteen pins. Why only thirteen? Well, the colon has only two states, it’s either off or on, so one end can be connected directly to either the power or ground, and we can control it from the other pin.
While reading information related to my display, I found that the common cathode was known to potentially have voltages higher than the individual inputs because of the tied circuitry. That’s okay, I got a new type of shift register to play with. The TPIC6B595 was recommended by another Glib during the first shift register discussion, and it has the distinction of operating differently to the existing SN74HC595 I dove into there. Both have the same logic under the hood (the 595 common to their names) but the method of operation was different. The SN74 pushes current to downstream components (under the model where current flows from the positive to the ground), while the TPIC sinks the current to ground. Among the differences was that the TPIC was rated for higher voltages, since it segregated the logic from the current being controlled. It could go up to 50 volts on attached devices. That was well beyond what I risked getting up to. Together, the SN74 and TPIC were the ideal pair to drive this display – and I had both to work with.
So, I got out my breadboard and began wiring.
I had learned in my research on the display that the 220Ω resistor in front of the LED was indeed to take the 3.3 volt current I ran off of down to something within the operating range of the light. I also decided I wasn’t going to use the dot off to the lower right of any of the digits right now, so I lined up seven lines to seven LEDs to feed… which pins?
Looks like a Clock. Perfect.
It took a frustrating amount of time to figure out that part. While the datasheet did tell me which pin number ran where, nowhere did it say which pin was which number. With the help of a multimeter and a YouTube video I eventually sorted out that the pins were numbered in the same convention as with ICs, that is, counterclockwise when looking down from above. So, what’s with that ’13, 9, 4, 2, 1, 12, 5, 3′ order for the segments? Simple – that pinout means the wires inside the brick are as short as possible, using the least material for the manufacture of the display. So, I was unable to get a neat and orderly set of jumper lines from my regimented row of resistors, as tying them to the proper pinout resulted in a nest of wires. Since there was nothing dictating which pin on the shift register tied to which pin on the display, I took the opportunity to line up the bits in a way that made sense to me. Left to right across the row of resistors I connected to EDCGFAB, creating a serpentine. So long as I mapped the bits correctly for my wiring, the order was arbitrary. And I wasn’t exactly using someone else’s code.
So, with it all wired up, I connected the breadboard to the Launchpad (which, like an Arduino has jumper pins for this very purpose) and hit ‘debug’ on CCS.
And nothing happened.
On that cliffhanger, I leave you until the next installment, as we dig into debugging.
