In writing the previous six articles about designing and building a digital clock, I found some software bugs and some improvements that could be made to the hardware design. I also found that the act of wiring it up by soldering bodge wires to a protoboard was a royal pain in the backside.
I couldn’t leave it there, it felt incomplete.
So, I looked and found I could order small batches of custom Printed Circuit Boards (PCBs), some of these companies even made them in the US. It did require learning new software as I had to provide them with the design. I tried out two – Design Spark and KiCAD. I already had KiCAD from when I drew up the schematic for an earlier article, and picked up the free version od Design Spark to try it out. The initial learning curve to get started is a bit steep, so I bounced back and forth between programs trying to get over that first hurdle. Once I got moving, the learning curve levelled out and became easier to get better. I ended up with KiCAD mostly by luck of the draw as I got a footprint on the diagram there first.
A footprint in PCB design software terms is the layout on the board for a component’s connectors properly placed so that said component can be attached later. It often also contains some silkscreen drawings and text. But I’m getting ahead of myself. To talk about designing a PCB, we need to talk about the structure of a PCB.
Your most absolute basic PCB has the board and a layer of copper traces. These traces are where the electricity goes. However, this style of single-sided board is an antique. It has a lot of shortcomings, not the least of which is the difficulty in laying out circuits where the traces have to cross each other without shorting. Also, exposed traces are easily damaged, especially by corrosion. The answer the first problem, most modern circuit boards have either two or four copper layers separated by insulating board, and the outside has a solder mask covering most of it. The solder mask shields the traces and is a material the solder doesn’t stick to. It is essential in preventing short circuits and forstalling corrosion. And to top it all off, there’s an outermost layer where ink is printed on the board. This is the silkscreen, named for the printing technique used to apply it. The silkscreen exists entirely to provide information to the human looking at the board. Most often it will contain information about the components you’re supposed to have on there and how to hook them up.
I designed boards with two copper layers, because it was the default and I could make it work. I could have made it with fewer vias if I used four layers, but that would also be more expensive. What is a via? A via is a hole through the board connecting the copper layers to each other. Sometimes they are places for soldering in components, sometimes they just move the trace to the other side of the board. Speaking of soldering on components, there are two general types – through-hole and surface mount. These names are self-descriptive. Through hole is the older style where the leads from the component are poked through holes in the board to provide more hold to solder them in place. These tend to be bigger and easier to solder by hand. Surface mount components solder on to exposed pads on the surface of the board. They can get much smaller and when you have robots attaching them can get downright microscopic. Surface mount components are more difficult to work with, but allow for more miniturized final devices.

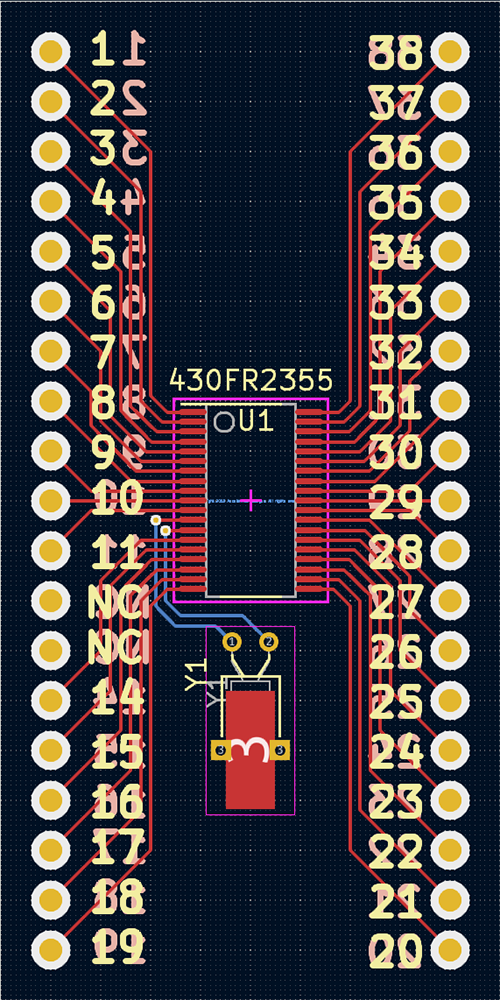

Being a rank ameteur, I use mostly through hole components. I say mostly, because my first PCB was a simple deisgn to convert a surface mount component to a through hole. What am I talking about? This thing:
A Learning Experience
You see, in looking forward to future projects, I found that the software limitations of the chips I’d been using were a problem. But the MSP430 series chips with more resources were all surface mounts. I identified a model which had a launchpad and designed a board to connect the pins to pin headers. This solves so many logicstical issues with prototyping and programming the chip. Rather than affixing the chip to a board and having it stuck there, I can make a pluggable module that can be moved from breadboard to launchpad, to final device. Yes, it’s bigger, but it’ll be easier for those future projects. I also left a spot for a clock crystal just in case I need it.
Now that I’ve learned how to design PCBs in general, I can put together the clock in particular. The built-in footprint library that KiCAD comes with doesn’t have… well, most of what I need, especially in the Integrated Circuit category. Thankfully, the comapny I’ve been buying a lot of my components from (DigiKey) often has footprint models to download for the components they sell. Win! Unfortunately, they did not have one for the display. Sad! So, I had to break out my calipers and start measuring the leads on the display to lay out the holes. Thankfully, they had masurements that could be done in multiples of 0.1″ between centers of the pins. Being a standard spacing, the measuring tools and grid in KiCAD could easily lay out vias in the correct pattern.
Now for the real challenges.

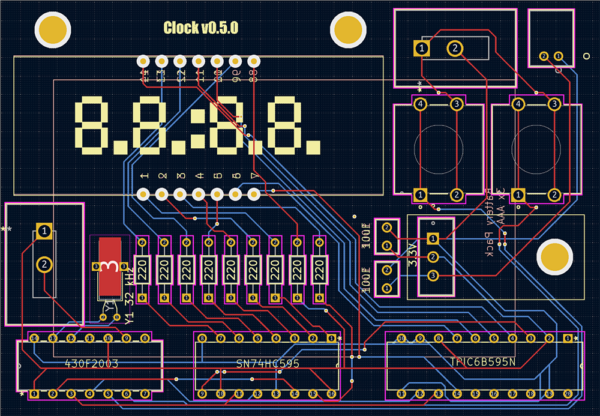

Because I’m paying for someone to print me up circuit boards, I have to be mindful of the cost. This cost is calculated by the size and complexity of the board. Two-layer is the simplest, and thus cheapest (since single-layer isn’t used regularly), so the question becomes one of fitting into a smaller footprint. After laying down the basic elements I decided to stick with a 3.25″x2.25″ footprint. This ran a smidge over $10 with my chosen provider (Made in the USA). I could have squeezed a slightly smaller footprint out of it with some shenanigans and moving some components to the other side of the board. But I decided it was worth it to make it easy on myself later. I spent a lot of time tweaking the layout, but this is what I came up with:
It is a bit hard to read at first glance, what with the layers all stacked up.
If you notice, I changed the design of the hardware. The switch to control whether or not the user can change the time is now completely separated from the software, it turns on or off the power to the buttons instead. I also added a power regulator with its recommended regulating capacitors between the battery connector in the upper right and the rest of the circuit. I’ve also connected the previously unused pin 15 on the SN74HC595 up to the lower right dot on the display. Lastly, I’ve added a switch to pin 9 on the microprocessor. What I plan to do is update the software to show whether it’s AM or PM on the display, and turn off the display without disabling the clock.
I did forget to label the positive and negative pins on the battery connector. The only saving grace is that I set it up to work with the battery packs I already own so I won’t get it backwards if I just plug the keyed connector in. Oh well, it’s not a deal breaker.
Next, I’ll have to update the code to incorporate these updates, solder up a prototype, and then design a case for the finished clock.
Oh, did I mention that I want to 3D print a case so that it looks and acts like a real device? Well, I want to. Then, this project will be complete.
You’ve gone past my experience building circuits. After I’ve gotten something breadboarded I’ve always transferred it more or less exactly to a prototype board like this:
