I’d wrapped up the 7th article in this serious on an optimistic note. I had just patted myself on the back for having drawn up a circuit board diagram like a real electrical engineering studies intern, wasn’t I so smert?
The boards arrived, and I began spotting mistakes I made. The mistakes continued to pile up, some of them old, some of them made while trying to troubleshoot the existing issues. So, instead of the triumphant victory lap I’d hoped for, I’m going to delve into what I did wrong. But learning means making mistakes and figuring out how to avoid them later. So I’ve identified ten specific errors to address. Six were in the design of the board, and four were made while looking at those six.
Now, there may be more identified going forward, but I’ve not solved those yet, so I can’t rightly write about what went wrong.

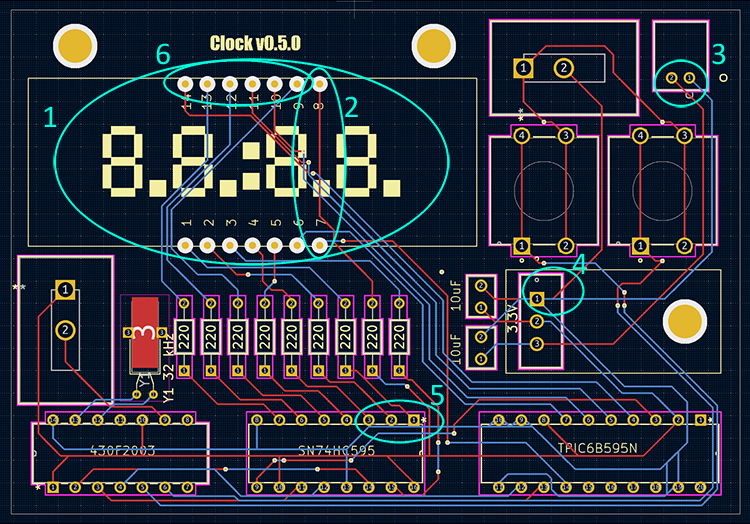

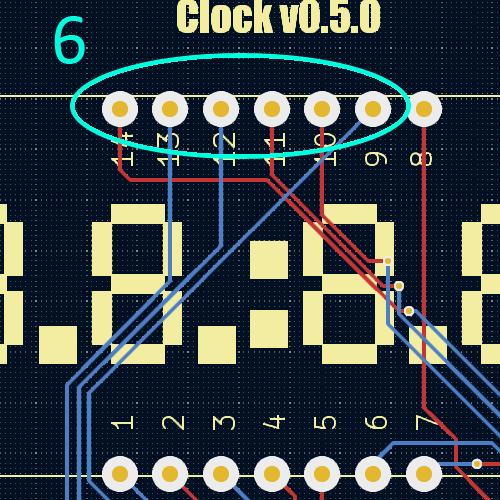

As a quick overview, the six errors in the board design are in these spots:
Maybe I should just have circled the whole thing?
I’m going to address them in the order I discovered them, as a chronological narrative will explain the two additional errors in troubleshooting.
Errors one and two were made at the same time, and discovered fairly quickly as soon as the board arrived, though I’d figured them out before them.

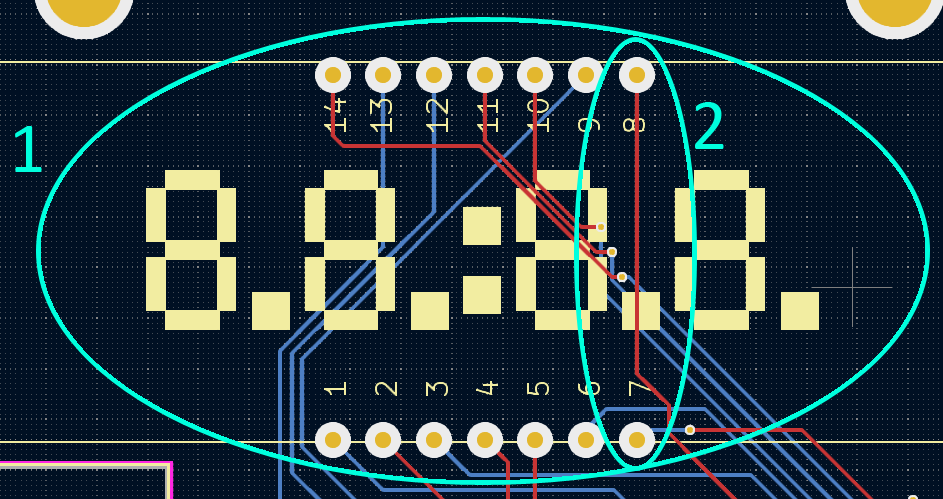

My first mistake.
Both come from the same mistake. The four digit seven segment display I used did not have a premade footprint for KiCAD, so I figured I’d create the connections for it by placing Vias for the posts to get soldered into. This plan wasn’t bad on its own, but I missed some details when setting it up. The first was easy to make. By default, KiCAD has solder masks over the vias as they are intended to connect traces on different layers of the board. Since I didn’t remove that from the design, the board arrived with solder mask over the copper where I’d intended to solder. The fix was straightforward, I ended up scraping the mask of with an X-acto knife.
Mistake number 2 was one of spacing. Inside the two rows, the vias were properly spaced, but the spacing between the two rows was between 0.1-0.2″ wider than it should be. I don’t know if I messed up when moving them around, or when I originally measured out the spacing. Thankfully, the leads on the display are fairly long, so I was able to bend them into a wider spacing and fit the display into the board. I figured I’d made my mistake for the stage, but oh, how wrong I was.
I got everything soldered onto the board, plugged it in, and nothing happened. “Nothing” is one of the more difficult issues to track down. The power supply portion of the circuit is brand new to the printed board version, since the breadboard was powered wither off the launchpad or an Arduino, and here I had to regulate my own voltages. So I had the least experience in working with these components. Since it wasn’t in the earlier discussions, I’ll have to go over the voltage regulator circuit to pad out the article provide proper background.
In short, I needed to bring a 4.7v input power from the battery pack down to the 3.3v I’d designed the rest around. They do make voltage regulators that do exactly that. I built the circuit around an example in the datasheet for the component I bought. Here’s the datasheet example in question:

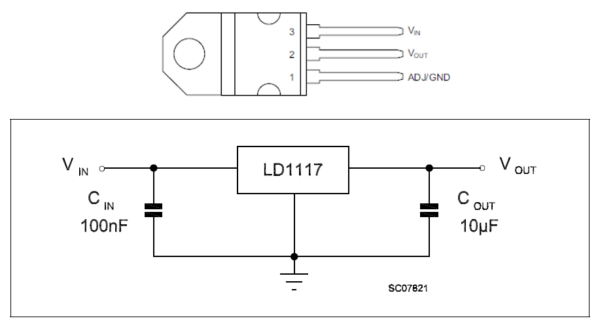

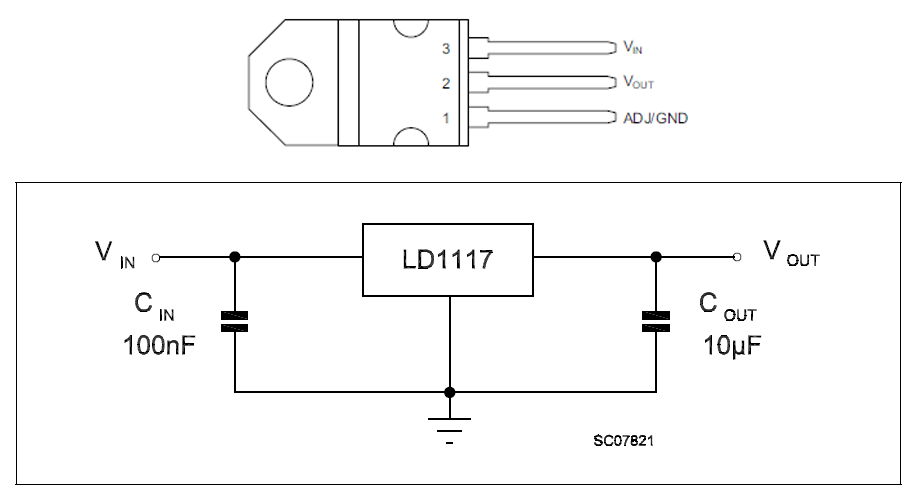

This is actually two different diagrams bodged together since the other stuff isn’t needed for the article.
Vin is the 4.7v from the battery, it goes into Pin 3, but has a ten microFarad capacitor connecting it to ground. The Vout is the 3.3v going to the rest of the decide and comes from Pin 2. It also has a 10 microFarad capacitor connecting it to ground. Ground gets connected to Pin 1.
Now, why in the world do we have capacitors shorting both of these lines to ground? In short – we don’t. According to what I’ve read, once the capacitors are energized, they become highly resistant to DC current, but offering low resistance to AC current. What this means is that once it fills up on that ten microFarads, it doesn’t short out the line, but it does divert any current going the “wrong” way to ground. This leads to their name as ‘filter caps’, as they filter out some of the potential power problems. I included them as a best practice, since I’m not so smart as to argue with the people who’d come before.
So lets take a look at where I made mistakes in the power circuit.

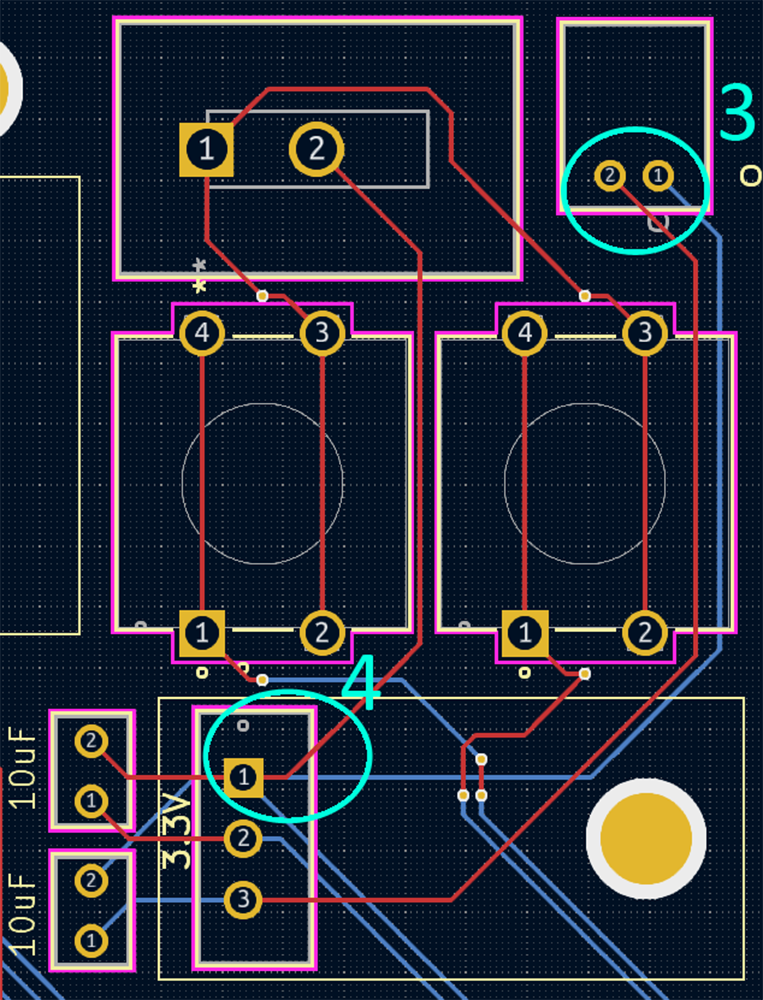

Power Underwhelming
Problem 4 is simpler, but helped me second guess the fix to problem 3. In short, what I did was connect the switch at the top to the wrong pin. I meant to connect to Vout (Center Pin), but connected to Ground (Pin 1). Connected to ground, the switch would do nothing, as it was supposed to provide a positive voltage to downstream components. What this led to was me thinking I’d installed the voltage regulator in upside down. Thus I made my first mistake in troubleshooting. I desoldered the component and flipped it to the other side of the board, swapping Pins 1 and 3. Now, voltage regulators have rather beefy pins to handle the load that gets put through them. This has made them the bane of the amateur soldering efforts. The solderpullt and solderwick were unable to extract enough of the solder from the holes, so I resorted to hot air to melt the solder on all three leads at the same time. This did get the voltage regulator out, but I touched the edge of the display with the hot metal on the air gun, melting some of the plastic.
Moving the component to swap Pins 1 and 3 was completely the wrong move. The blue trace off Pin 1 in the diagram is the ground plane for everything. Connecting Vin to the ground plane does not do anything useful.
Ultimately, I concluded that my mistake was in wiring up the battery connector backwards. These connectors are what I circled for Mistake 3. Pin 2 on the battery connector is ground. The correct fix was to break the traces and run bodge wires to the correct pins on the voltage regulator. But first, I had to put it back on the correct side. This, again led to be resorting to hot air to finish removing the component. Again, I touched the edge of the display and melted more plastic.
I did check for solder bridges, it’s not neat, but there are no shorts.
When I was done, all three voltage regulator pins had their own bodge wire, two for the battery connector, and the center pin to connect the switch properly. I powered it back up… and only the top half of the display lit up.
At this point, I made my second troubleshooting mistake.
I assumed that I had damaged the display when I melted bits of plastic on it. To be fair, it wasn’t an unreasonable conclusion, since the half that was failing was closer to the damage. Since I thought it was broken, I didn’t make a concerted effort to save the display, and ended up clipping the leads after desoldering left them still stuck. I bent the leads on a new display and attached it. Half of it didn’t light up. The same half as before. The display with the melted plastic and now stuffy leads was working just fine. So, I went hunting for mistake 5.

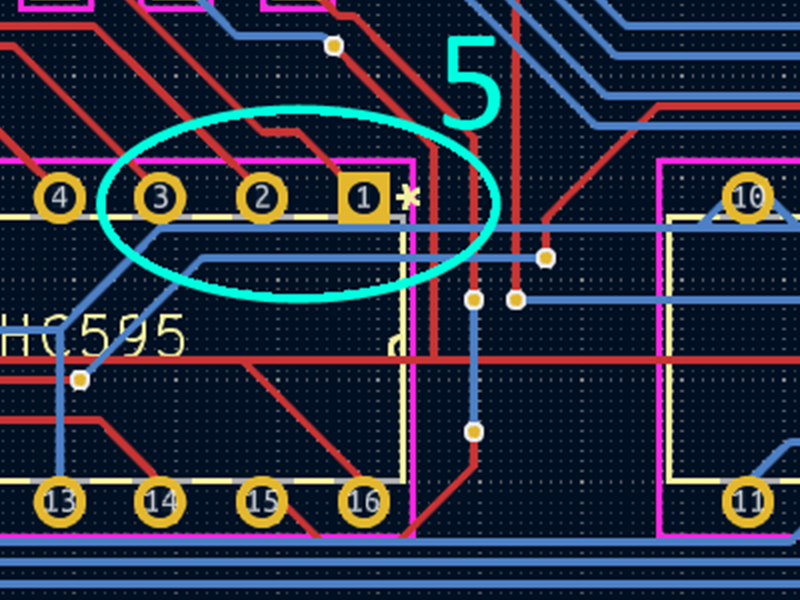

I found it here:
It’s obvious, really
A sharp eye might see what is wrong with pins 1, 2 and 3 on the Shift register here.
I did not intend to attach them to that trace, but it got too close, and all three shorted to it. What is that trace? The ground plane. Pins 1, 2, and 3 are data lines controlling the bottom three segments of the seven segment display, so if they’re all shorted to ground, half of the display will never light up. Now this diagram is zoomed way in. Bear in mind that the space between pins on this board in 0.1″ (2.54mm), so that second trace below the ground plane was awfully close. What is that trace? It’s the serial line providing data to the second shift register, controlling which digit of the display is being controlled. If I broke that, the entire display would go dark. I had no choice but to break up the ground plane trace, and avoid damaging the serial data line adjacent. This led to a lot of careful picking away with the tip of an X-acto knife, and running another bodge wire between Pin 10 on one shift register to Pin 13 on the other to repair the ground plane. Ultimately, the changes looked like this:

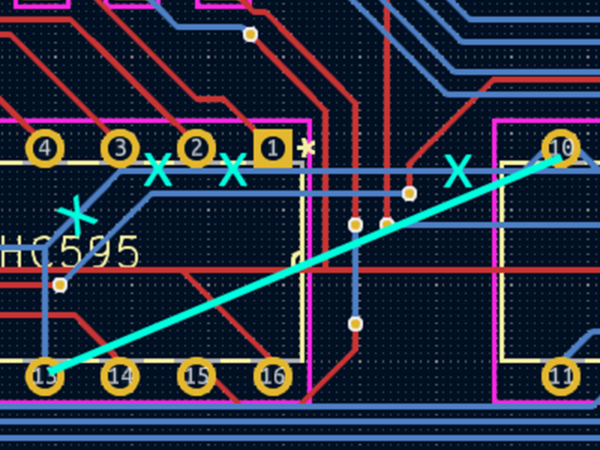

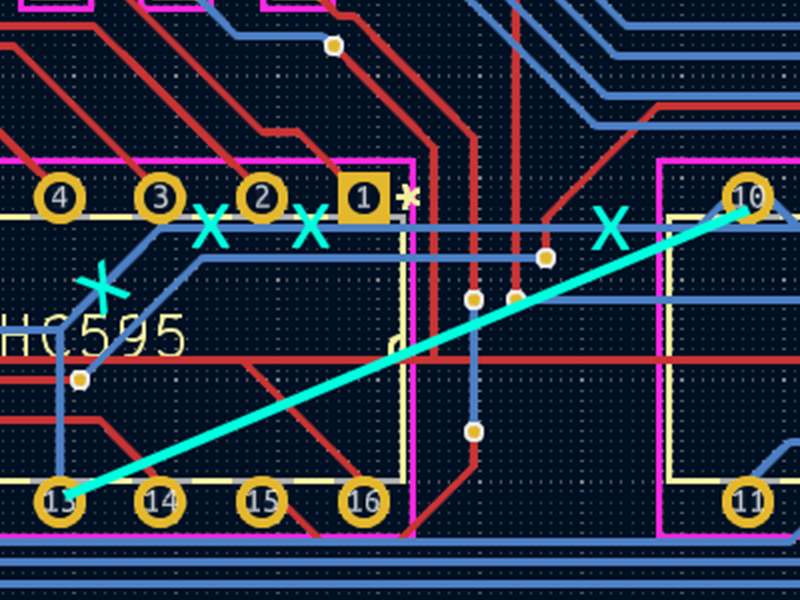

X never, ever marks the spot.
Surely This had to be everything?
Of course not. There is another. One I made way back before I ever designed a circuit board. It lives here:
Le Sigh.
When I drew up the schematic for Article 4, I made a mistake in recording which wires on the shift registers were connected to which pins on the display. This manifested in the digits showing garbled output. I still had my breadboard wired up and verified that it did not match what appeared in the schematic. I’d used the schematic as my reference for the circuit board, so that transcription error was carried forward.
I could have fixed the wiring, but this problem was fixable in code. Updating the code requires moving the MSP430 back to the launchpad to re-flash the storage. I had anticipated the need to change code, so I put the three Integrated Circuits in sockets that let me pull them without having to desolder anything. What happened next was yet another mistake – I severely bent the pins on the microcontroller when I pulled it from the socket. One was particularly warped in a manner where I knew I’d need to spend a lot of time coaxing it into a workable position. Rather than do that I grabbed a spare MSP430F2003 from my collection and plugged that into the launchpad. I was about to overwrite all the code anyway.
To make sure I was able to make multiple updates without risking another mishap, I connected jumper wires from the launchpad to the socket. I dubbed this the debugging harness, as it let me run and update code to run against the hardware without risking damage by constantly swapping the microcontroller back and forth.
Typically this would be by my computer, but it’s more photogenic over on the workbench.
Luckily, I knew exactly what line of code needed updating. It was
unsigned int digMask[10] = { 0x77, 0x11, 0x6b, 0x3b, 0x1d, 0x3e, 0x7e, 0x13, 0x7f, 0x3f};
Those magic numbers were simply the translation from a binary record of which pins needed to be turned on for the right segments to light up. I just had to map out what pins led to which segments and update the numbers.
Aaand then I made mistake 10. Being a native English speaker, I read numbers with the most significant digit on the left, and think about them that way. So Pin 7 got mapped to the leftmost digit while Pin 1 got the rightmost. Unfortunately, to fill the shift registers with data, I had to send Pin 7 first, so it was supposed to have the Least significant digit. It only took me two rounds of “what is going on here?” to realize my mistake.
Stupid Endianness.
Now, the numbers were finally displaying as they should.
Problems solved, right?
Ha Ha, of course not.
I’ve got two more unsolved problems, which might be from additional undetected mistakes, or from factors unaccounted for. But I haven’t solved them as of time of writing.
First problem is that button presses for setting the time simply send the values going wild, clearly that signal is insane and I’ve got to figure out a better debouncing method.
Second is that whenever the Colon in the middle of the display is Not lit up, some of the other segments which are supposed to be dark will flicker on slightly. For the time being I’ve hacked a fix by keeping the colon lit, but I want that to blink with the seconds.
But these are for future me to solve. Right now, I’m going to take a break and ruminate.
Maybe Part 9 will be a redemption arc where I’ve fixed my mistakes and present a working clock. Maybe.
