Those of you who have been around here know a couple of things about me: I am supremely lazy, and I shoot a CZ Shadow 2 in competition. The former means that the maintenance of the latter is extremely laissez-faire, with me cleaning it once or twice a year, either before a national match or if something feels off about it. And that “cleaning” is removing the slide, wiping down the rails and the inside of the grip and then applying some lubricant to the rails before putting the slide back on. The fact that I can get away with this is one of the many reasons I will never shoot in the Open division, where guns have approximately the usage/maintenance time ratio of an F-35. Seriously. Anyway, up to 20,000 rounds fired I’d encountered four malfunctions/stoppages, all of which happened in the first 5000 rounds. I pre-emptively replaced the trigger return spring at 15,000 rounds, and I broke a slide stop somewhere after that, but that breakage did not cause the gun to malfunction and I only noticed the issue when I took the gun apart for a pre-nationals cleaning after 18593 rounds. This gun is as reliable as anything I’ve heard of. So when somewhere between 20550 and 20642 rounds (sorry I can’t be more precise) when the buzzer went off and I drew the gun, pulled the trigger and heard a click, I assumed I had done something stupid like forget to chamber a round or seat the mag fully or the like. The tap-rack-bang had a live round fly out with an undented primer, so that was an indication that something was amiss (and was malfunction #5). Troubleshooting/experimentation indicated something was wrong with a part called the disconnector. If you shoot this or a similar gun, the signs are as follows:
- The gun always goes bang when the trigger is pulled and the hammer is back. This indicates that there’s nothing trong with the linkage between the trigger and the sear.
- The trigger either does not come back when the hammer is manually pulled back (lots of slop in the single action trigger) OR the hammer does not go back when the trigger is pulled in double action*.
In my case, it was the issue with the double-action pull either not pulling the hammer back at all, or only partially pulling it back before releasing it (causing the click but no bang). Here’s a video of the problem.
Hammer moves the trigger, trigger only sometimes moves the hammer

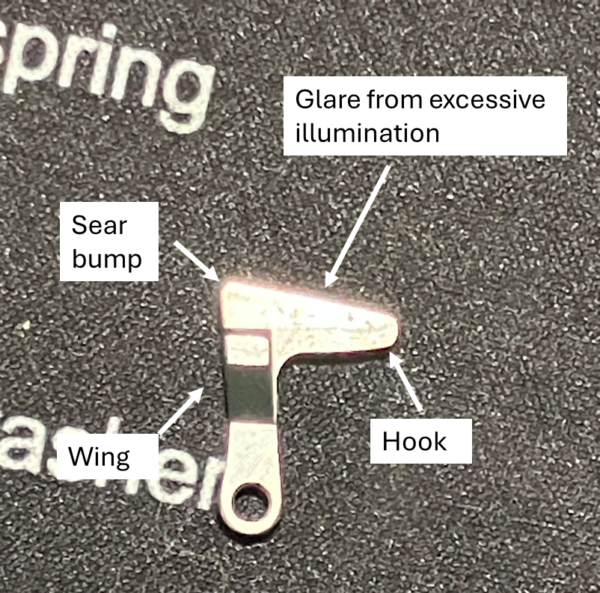

The disconnector has three parts: a raised area that engages the sear (still works), a hook that pulls the trigger when the hammer is pulled (still works) and a wing that pushes the hammer back when the trigger is pressed (no es bueno).
Since I had a decent idea of what was wrong, I bought a replacement disconnector and watched some youtube videos to get an idea of how to replace it. It seemed within my comfort zone. You know what I discovered? Youtube videos are full of lies. Well, if I’m being charitable they’re created by someone who has a new stock gun and is installing custom parts before they began shooting the gun in earnest. Because in the videos, pins push right out and parts that were formerly held in place by pins life out effortlessly. This… did not happen. The first steps are trivial: confirm the gun is clear, then remove the slide and grips. The next steps were trivial in all of the videos I watched but took me longer than any other part of this process.
Ideally, you press up on the hammer spring plunger [1] (not visible), and remove the hammer spring retaining pin [2]. Then the cap comes out under pressure from the hammer spring [3]. That last bit did not happen. See how freaking shiny that hammer spring is? I’m assuming it was forming some sort of galvanic connection with the cap, because it was corroded and didn’t want to go anywhere. Also, after removing the magazine brake pin [4] the magazine brake [5] is supposed to just fall out. That did not even vaguely happen. Because these removals were supposed to be so effortless, I spent an absurd amount of time trying to figure out why they weren’t moving and not wanting to force things. Eventually I decided to take a pair of pliers to the magazine brake on the assumption that it might have corroded into that tiny little slot it sits in you can see next to the hammer spring retaining pin. Doing that released some pressure on the hammer spring such that creative use of a punch as a prybar let me get out the hammer spring. This experience saved me a great deal of time when the hammer pin pin (not a typo) [6] did not fall out under gravity when the frame was turned upside down that I didn’t futz around and just popped it out with a jeweler’s screwdriver.
That jeweler’s screwdriver was to be used in the next step where you lift a leg of a spring in the sear cage in order to release the safety, that lets you remove the sear cage. Yes, the sear cage is held in place by the safety, and the safety is held in pace by the sear cage. Quite clever.
This step let me get a good pic to show you what the inside of the gun actually looks like when owned by a lazy person like me. and why parts weren’t coming out quite as freely as on a brand new gun.
After scraping in the general area, the spring lift/safety extraction went remarkably smoothly. And in fact, one of the small parts that has the potential for flying across the room was conveniently cemented under a few year’s worth of gunshot residue. The next step was lifting the hammer assembly out, where I could finally get a good look at the disconnector that had started this whole project . The encrustation of filth issue continued to the point of me wondering if perhaps the disconnector was not actually defective, but rather just caked with mixed carbon compounds. But, I’m this deep into it, might as well put the fancy-schmantzy Cajunized disco in at this point.
This next step is the first one that even by the videos required whacking with a hammer, because the disconnector pin is staked at the factory. For this application I really love my chasing hammer.
Speaking of specialty tools, I got a cheap watch repair kit when I was gifted a pocket watch and those tools have applications in gun maintenance as well. I use the non-marring hammer in that kit probably more often than my regular one. Anyway, once that pin’s tapped out, it’s impossible to say if the disconnector is the problem or not without some cleaning.
So I cleaned it. And it turns out I was not wasting my time. There was considerable wear compared with the new part.
The new disconnector came with a new pin which did not need to be staked, so reassembly was easy. Before I put everything back together I got out the Ballistol, bore patches and Tipton picks and went to work de-horrifying the surfaces. I also took this opportunity to take some pics of the various parts after cleaning like I did with the 10,000 round review to see what kind of wear is going on here. It makes me sad to think this gun might be wearing out, especially since it was more expensive when I bought it than it is now. Having said that, on a per-BLAM! basis, this gun cost me less than $0.08 at this point, whereas the ammo is triple that. And I am happy with its >99.975% reliability. So yeah, I do recommend this gun.

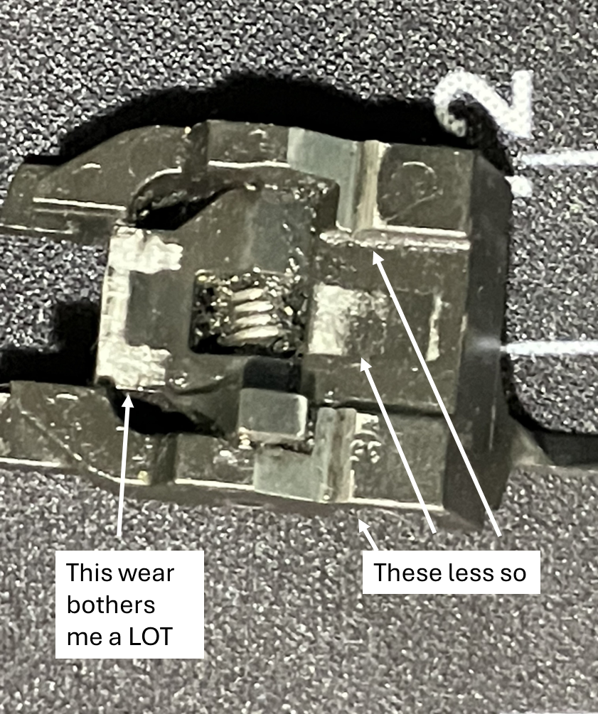

A few views of the sear cage. This part is important.
After reassembly (that made use of the tweezers from the watch repair kit in order to replace the hammer pin pin (still not a typo)) a reassembly that took less time than the disassembly oddly enough (or maybe not since everything had been cleaned and lubed prior to reassembly), I gave the gun a quick function check. It worked! And then, it didn’t! New problem: The hammer is stuck back. I have heard of people having issues where the trigger overtravel adjustment is preventing it from going back far enough to engage the sear, but that doesn’t seem to be the case here. Is it a problem with that worn sear? I sure as fuck hope not. The most likely explanation is that I fucked something up during reassembly, maybe let the hook pop off and get stuck behind the trigger bar — that would do it. What I should so at this point is disassemble it again, check to see if there’s anything obviously wrong and reassemble that. But it’s well past lunchtime and I’m frustrated, so I’m going to take it to the gunsmith tomorrow instead.
*Two days later*
So I took it to the gunsmith, who is clearly on the spectrum in a useful way, and he tells me the sear wear isn’t anything to worry about, and more importantly — the problem was not my fault! The issue is with the new part itself. Remember how I pointed out the hook pulls the trigger back along with the hammer? Well, trigger snobs/prima donnas/stubby fingered folk think that the trigger goes too far forward when the hammer is down. The company that made this disconnector also makes one with a thicker hook that prevents the trigger from going forward all the way, which they call a “reach-reduction” trigger. I specifically did NOT buy that one, but apparently I got one. That part requires fitting by filing down the hook until it’s small enough to allow the trigger to go back all the way.
Here’s one of the previous pics, relabeled to show you the issue.
In addition to the tedious, delicate work of filing the disco down until it fit properly, he took the gun down to the frame, soaked and sonicated all the parts in solvent, then lubricated and reassembled it. For $85.** Because of that he gets a free plug: I can recommend Rob Porter at Saratoga Weapons and Tactical.
Then I did one of the most potentially stupid things you can do — take a gun that’s had major work done to a match before you give it a good shakedown. I also brough a backup gun but it was not needed. The gun ran flawlessly. The Person behind the trigger less so.
*Single action means the trigger does just one thing — release the hammer. Double action means the trigger pull does multiple things, in this case it also pulls the hammer back.
**Either he’s really fast, or he doesn’t value his time very highly. Even if it only takes ten minutes for an experienced person to tear down and rebuild the gun, he had to have put in at least two hours of labor. The function needed to be rechecked after each bit of filing, and if you take away too much metal, the part is ruined.
