As stated back at the beginning, the Clock was only a starter project. Ultimately, I had an ill-defined end goal of “Something with a Nixie Tube Output”, but no concrete idea of what that objective was to be. Since them I’ve recklessly purchased a thermocouple driver, a pair of eInk displays and drivers, and a bunch of random components, including heavy duty switches, a pricer DC/DC converter, and assortments of unidentified items that need future investigation.
Recently there was the recurring problem where the breaker box in my house got too hot and reduced the amperage level at which the breaker for my AC would trip. I could keep replacing the breaker over and over again, but if I don’t do anything about the heat in that space, it will just happen again in future years. I was able to stop the repeated breaker tripping by removing the front panel from the box and letting air flow freely over the electronics within. This isn’t a safe or sane state to keep it in. The idea was floated that I liquid cool the breaker box.
The more I looked at the problem, the more doable it looked. First, lets take a look at the problem:
Now, I don’t want to jam any aluminum heat sinks inside that space, lest I start shorting things out. Nor do I want to run tubes of liquid through that space. But there is something not pictured that can be of use. The panel that I took off is all sheet metal. If I attached the head sinks to the outside of that, the panel would become a heat sink for the stagnant air inside the box. This will keep the two spaces as separated as possible, and I will not be meddling with mains power any more than necessary. Plus, if I need to swap out any breakers in the future, taking off the front panel will remove the heat sinks from the equation.
The second question is where I can set up the head exchanger, coolant pump and reservoir, and the controller module. Well, I do have some open space available.

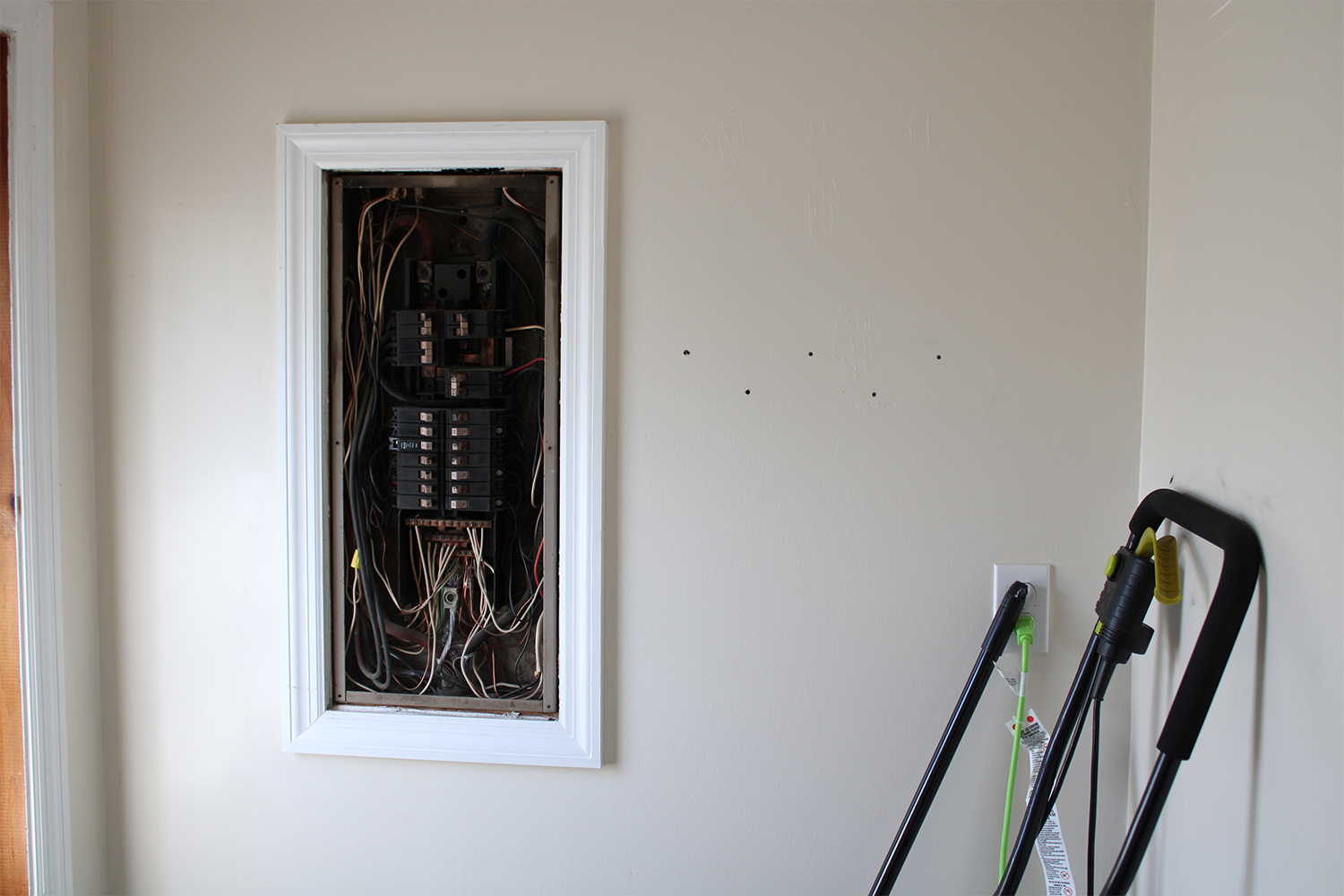

There’s an outlet right there. The holes in the wall held key hooks that the previous owner of the house took with her when she moved out. I’ll want to find studs in the wall, but I’m sure there’s some in the area. But I did quickly sketch up an idea of how the major components would be laid out.
This is just a draft visualization to give some idea of how it would be laid out. The exact sizes of each component are obviously not taken into account since none of them exist yet. I expect the platform will be a wire shelf so that I can lay the heat exchanger flat and push the air upwards through it. And the exact path of the coolant tubes will be different. I debated putting the heat exchanger in another room entirely, but concluded that I don’t need to make the space cold, just cool enough that the breaker doesn’t trip from the AC usage on hot days. Since just opening the panel helped end the problem, just moving the heat away from the breakers should be enough.

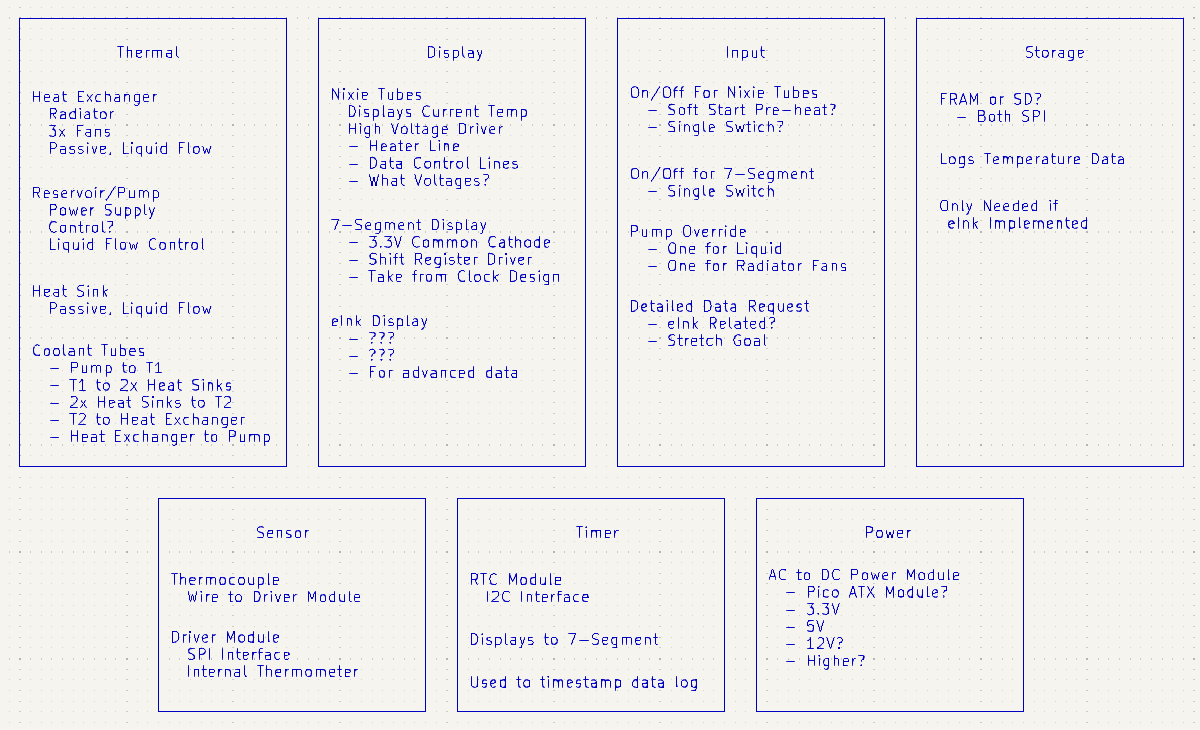

This is obviously a more complicated device, so to make it more practical, I need to break it down into managable pieces. The Thermal System will be largerly off the shelf liquid cooling components and consists of the radiator/heat exchanger, a reservoir/pump, two heat sinks, coolant tubes, two T-junctions for the coolant tubes, three fans for the heat exchanger, some mechanism for draining and flushing the coolant lines, and a simple filter to keep the dust out of the radiator fins. The system would be controlled through the pump, but the manner of that control depends on what hardware I get. The fans should be running whenever the pump is going. The coolant should be of a kind that is as non-conductive as possible. They already sell that for use in computers for people like myself who are paranoid about pumping liquid around electricity.
Almost all of the other systems in the device will be bespoke, designed and built to suit. Some off the shelf components are available. The power supply will err towards off the shelf for safety. Since I already have driver modules and real-time clock modules, those will go into the sensor and timer systems. Anyway, I identified seven major systems to be worked on.
The Display System is actually three subsystems, and the input is a catch-all for a bunch of things which might never interact with each other.
Anyone reading the draft plan will notice that question marks abound. These are areas where I have done the least investigation. So changes are inevitable as I learn more and develop a more finalized design. The project is within my grasp in that I know enough to know I can learn or figure out the pieces I don’t currently have. Plus, other than the power supply and thermal system, I already own the vast majority of components I’ve identified as needing. I will have order some rounds of custom PCBs when I get that far, and may identify pieces that are currently not part of my collection, but the expenditure is less than some of my other hobbies.
So, where did I leave off?
Right, the button presses were not being registered by the Pluggable MSP.
Fun.
Did you bother to clean the AC? It needs cooling too. Code violations and danger are in your future, good luck
This is all staying outside the box. I didn’t want to risk any shorts inside the box.
I see an IR thermometer in his future too. Figure out what is getting hot to cause a breaker trip. Panels sit in garages or outside without tripping. Either a problem with the AC unit or wiring/breaker being undersized.
I would not run water next to a panel by choice. And certainly not anything designed for cooling PCs.
You’re not supposed to use water. There are proper coolants which don’t pose the electrical or corrosion problems of water.
The coolants are distilled water and usually some kind of biocide and possibly a corrosion inhibitor and coloring. The failure on PC water cooling is reason I’ve yet to bother with it.
I’m not suggesting that it’s going to short the panel – I’m suggesting that when it creates the inevitable pinhole leak it’s going to corrode the box and the contents.
Most recently I was looking at Trasnformer Oil. But I’m worried about its physical properties.
There’s always liquid nitrogen.
That’s expensive to run though.
Jesus, just buy a new box. That thing looks at least 50 years old.
JI is correct.
Good news is it appears there’s plenty of slack for a new panel. Can also dress those wires a bit better if it’s a decent sparky doing the work.
Concur.
I do not fuck with electricity. I’m very happy to pay a sparky so as to not die or burn the house down.
